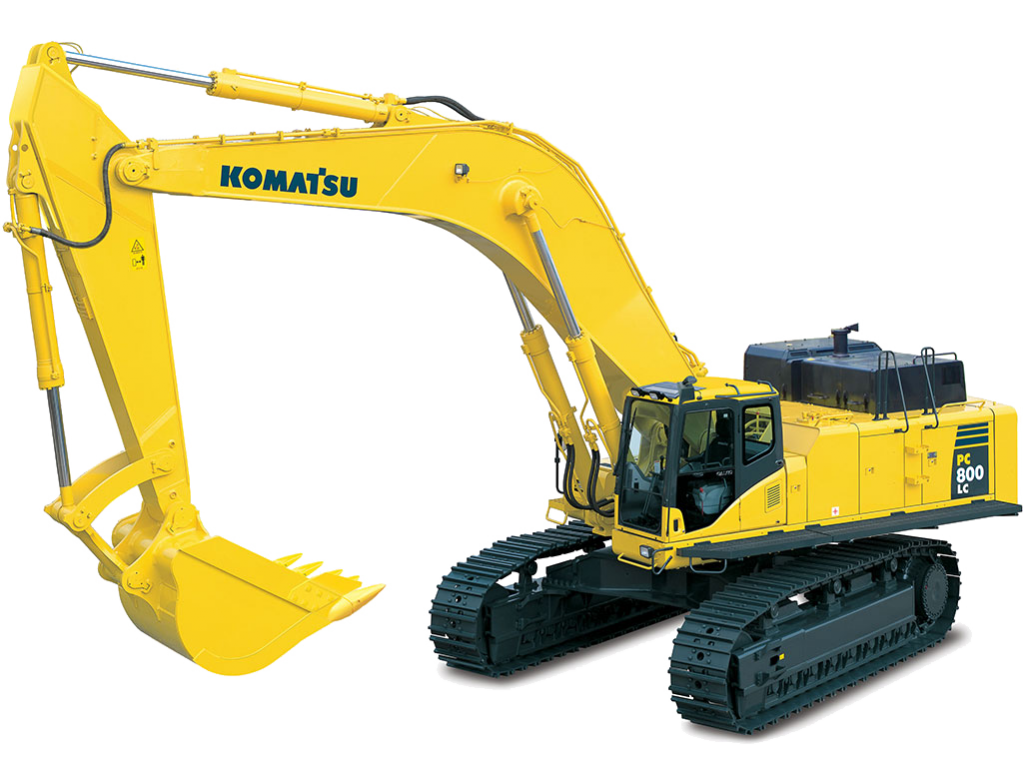

Komatsu PC800LC-8 Hydraulic Excavator

Komatsu PC800LC-8 Hydraulic Excavator

Komatsu PC800LC-8 Hydraulic Excavator Information

Got mass quantities of material to move or tough conglomerate to dig through? The PC800LC-8 could be the answer you’re looking for. Economy or power working modes, smooth or power boom modes and a shockless boom mode give the operator the tools he needs to optimize the production of his machine. In a Super Digger configuration, with two arm cylinders, digging force is increased by 19%.

Standard Equipment

ENGINE AND RELATED ITEMS

  • Air cleaner, double element, dry type
  • Engine, Komatsu SAA6D140E-5
  • Fuel pre-filter (10 micron) with water separator
  • Fuel primary filter (2 micron)
  • Variable speed cooling fan, hydraulic drive, reversible

ELECTRICAL SYSTEM

  • Alternator, 90 amp, 24V
  • Auto decelerator
  • Batteries, 220 Ah, 2 x 12V
  • Horn, electric
  • Interconnected horn and warning light
  • Power supply, 12V
  • Starting motor, 11kW
  • Step light with timer
  • Work lights-2 boom, 2 cab top front, 1 cab bottom

UNDERCARRIAGE

  • 810 mm / 32” double grouser
  • 9 track/3 carrier rollers (each side)
  • Hydraulic track adjusters (each side)
  • Variable track gauge
  • Sealed track

GUARDS AND COVERS

  • Radiator and oil cooler with net
  • Engine thermal guards and fan guard
  • Pump/engine room partition cover
  • Revolving frame undercover
  • Track frame center undercover (center)
  • Travel motor guards

OPERATOR ENVIRONMENT

  • Damper mount, all-weather, sound-suppressed cab with tinted safety glass windows, lockable door, intermittent window wiper and washer, floormat, cigarette lighter and ashtray, automatic air conditioner, AM-FM radio, seat belt (retractable) 78 mm 3″
  • Multi-function color monitor, full control dial, service meter, gauges (coolant temperature, hydraulic oil temperature and fuel level), caution lights (electric charge, engine oil pressure, and air cleaner clogging), indicator lights (engine preheating and swing lock), level check lights (coolant and engine oil level), self-diagnostic system with trouble data memory
  • High-back suspension seat, heated
  • Cab with pull-up type front window
  • Rear-view mirrors (RH & LH)
  • Rear-view camera (1)
  • Operator Protective Guard (OPG), Level 1 top guard

HYDRAULIC CONTROLS

  • Fully hydraulic, with Electronic Open-Center Load-Sensing (EOLSS) and engine speed sensing (pump and engine mutual control system)
  • Boom and arm holding valves (8200 mm 26’11” std. boom only)
  • Control levers, wrist control levers for arm, boom, bucket, and swing with PPC system
  • In-line high-pressure filters
  • Heavy lift mode system
  • One axial piston motor per track for travel with counter balance valve
  • Power maximizing system
  • Shockless boom control
  • Swing priority selection system
  • Two-mode setting for boom
  • Two axial piston motors for swing with single-stage relief valve
  • Two control valves, 5+4 spools (boom, arm, bucket, swing, travel)
  • Two variable capacity piston main pumps
  • Working modes (Power & Economy w/4 settings)

DRIVE AND BRAKE SYSTEM

  • Brakes, hydraulic lock travel brakes, oil disc parking
  • Hydrostatic two travel speed system with planetary final drive

OTHER STANDARD EQUIPMENT

  • Automatic swing holding brake
  • Auxiliary pump drive
  • Catwalk and handrails
  • Corrosion resistor
  • Counterweight, 13600 kg / 29,975 lb
  • Grease gun, electric pump w/indicator
  • KOMTRAX
  • Large handrails
  • Lift capacity chart
  • Marks and plates, English
  • One-touch engine oil drainage
  • Paint, Komatsu standard
  • PM tune-up service connector
  • Slip-resistant plates
  • Travel alarm

Optional Equipment

Arms

  • 3600 mm / 11’10” std. arm assembly
  • 3600 mm / 11’10” Super Digger arm assembly
  • 4600 mm / 15’1” arm assembly
  • 5600 mm / 18’4” arm assembly
  • 2945 mm / 9’8” SE arm assembly

Booms

  • 8200 mm / 26’11” std. boom assembly
  • 8040 mm / 26’5” Super Digger boom assembly
  • 7100 mm / 23’4” SE boom assembly

Shoes

  • 1010 mm / 40” double grouser

Other

  • Additional rear-view camera (1) RH side
  • Counterweight removal device
  • Full length track roller guard
  • OPG front guard, Level 2
  • OPG top guard, Level 2
  • Rain visor
  • Service valve (removes holding valves)
  • Sun visor

Engine

HORSEPOWER487 @1800 rpm

Performance

OPERATING WEIGHT184,705 - 193,025 lbs
BLADE CAPACITY2.25 - 6 yd³

List of Features

* Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
REQUEST A QUOTE
Contact A Sales Professional
Manufacturer Komatsu
Category Excavators
Subcategory Large
Model PC800LC-8
Condition New
Year 2021
Hours 0
