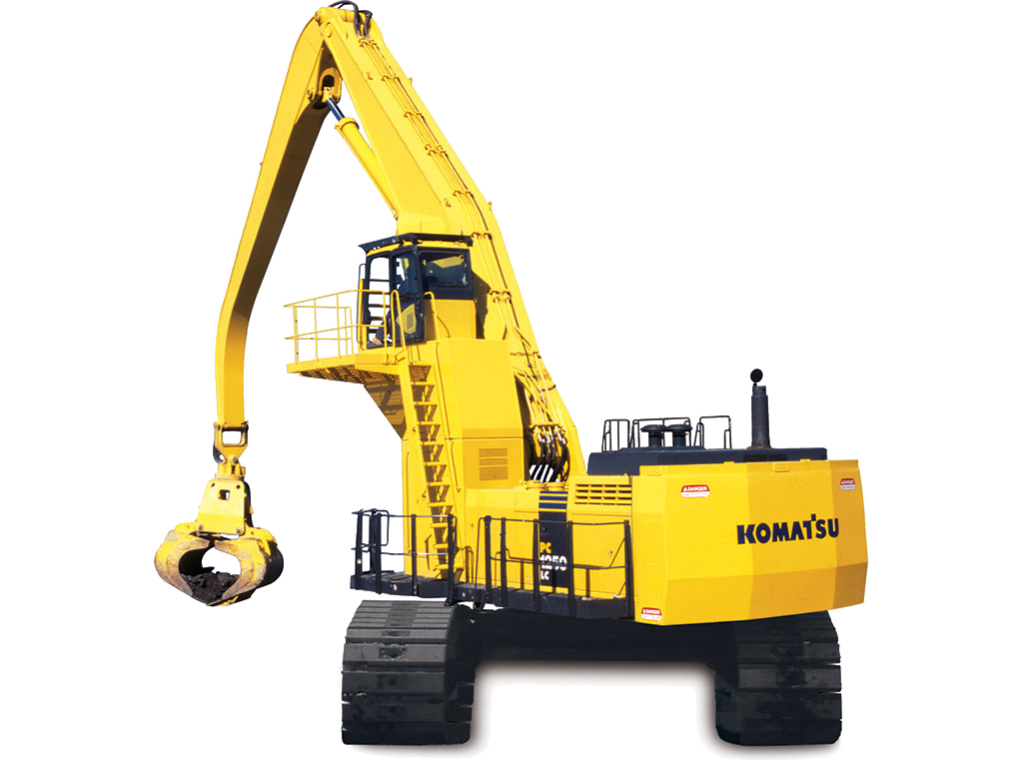

Komatsu PC1250LC-8 MH Hydraulic Excavator

Komatsu PC1250LC-8 MH Hydraulic Excavator

Komatsu PC1250LC-8 MH Hydraulic Excavator Information

Download Komatsu PC1250LC-8 MH Hydraulic Excavator Product Brochure

If you have a material handling application that needs high lift and plenty of lifting power, the PC1250LC-8 MH requires a closer look. An elevated cab, with tiltable structure for service access, and up to a 70’ two piece front give the PC1250LC-8 MH tremendous operating range.

Standard Equipment


  • Air cleaner, double element, dry type
  • Auto decelerator
  • Electric fuel priming pump
  • Engine, Komatsu SAA6D170E-5
  • Fuel pre-filters (10 micron) with water separator
  • Fuel primary filter (2 micron)
  • Variable speed cooling fan, hydraulic drive, reversible


  • Alternator, 90 amp, 24 V
  • Batteries, 220 Ah, 2 x 12 V
  • Interconnected horn and flashing light
  • Power supply, 12V
  • Starting motors, 11kW x 2
  • Step light with timer
  • Working lights-2 boom, 2 cab top front, 1 cab bottom


  • 1000 mm 39.4” double grouser
  • 10 track/3 carrier rollers (each side)
  • Hydraulic track adjusters (each side)
  • Track guiding guard (each side)


  • Engine thermal guards and fan guard
  • Dust-proof net for radiator and oil cooler
  • Pump/engine room partition
  • Revolving frame under cover (Heavyduty)
  • Track frame undercover (center)
  • Travel motor guards


  • Automatic air conditioner/heater/defroster system
  • Damper mount, all-weather, pressurized, sound-suppressed cab with tinted safety glass windows, lockable door, intermittent window wiper and washer, floormat, cigarette lighter and ashtray
  • FOPS (OPG top guard level 2)
  • Instrument panel with electronic display/monitor system, electronicallycontrolled throttle dial, electric service meter, gauges (coolant temperature, hydraulic temperature and fuel level), caution lights (electric charge, engine oil pressure, and air cleaner clogging), indicator lights (engine preheating and swing lock light) level check lights (coolant, engine oil, and hydraulic oil level), self-diagnostic system with trouble data memory
  • Pull-up type front window, lockable
  • Radio, AM-FM
  • Rearview mirrors, left and right
  • Seat, fully adjustable with suspension
  • Seat belt 78 mm 3″ non-cinching


  • Control levers, wrist control levers for arm, boom, bucket, and swing with PPC system
  • Control levers and pedals for steering and travel with PPC system
  • Fully hydraulic, with Electronic Open-Center Load- Sensing (EOLSS) and engine speed sensing (pump and engine mutual control system)
  • In-line high pressure hydraulic filters
  • Oil cooler, hydraulic
  • One gear pump for control circuit
  • One axial piston motor per track for travel with counter balance valve
  • Shockless boom control
  • Swing priority mode
  • Three variable capacity piston pumps (2 Main, 1 Swing)
  • Three control valves, 5+4+4 spools (boom, arm, bucket, swing, and travel)
  • Two axial piston motors for swing with single- stage relief valve
  • Two-mode setting for boom
  • Working modes: Power, Economy (four level), Heavy Lift


  • Brakes, hydraulic lock travel brakes, oil disc parking
  • Hydrostatic two travel speed system with planetary double reduction final drive


  • Automatic swing holding brake
  • Corrosion resister
  • Counterweight, 18000 kg 39,680 lb
  • Grease gun, air pump type
  • Horn, air
  • Large handrails and steps
  • Lift capacity chart
  • Marks and plates, English
  • One-touch engine oil drainage
  • Paint, Komatsu standard
  • PM tune-up service connector
  • Slip resistant plates
  • Travel alarm
  • Vandalism protection
  • Vehicle Health Monitoring System (VHMS) with ORBCOMM
  • Wide catwalk

Optional Equipment

Arms (Backhoe):

  • 3400 mm / 11’2” arm assembly
  • 3400 mm / 11’2” SP arm assembly (PC1250-8)
  • 4500 mm / 14’9” arm assembly
  • 5700 mm / 18’8” arm assembly

Booms (Backhoe):

  • 7800 mm / 25’7” SP boom assembly (PC1250-8)
  • 9100 mm / 29’10” boom assembly


  • 1000 mm / 39.4” double grouser (PC1250-8)
  • 1200 mm / 47.25” double grouser (PC1250LC-8)


  • Cab full front guard (PC1250-8)
  • Track roller guard (full length) (PC1250-8)


HORSEPOWER672 @1800 rpm


OPERATING WEIGHT244,418 - 279,157 lbs

List of Features

* Price, if shown, is Manufacturer's Suggested Retail Price (MSRP) and does not include government fees, taxes, dealer freight/preparation, dealer document preparation charges or any finance charges (if applicable). MSRP and/or final actual sales price will vary depending on options or accessories selected.
Contact A Sales Professional
Manufacturer Komatsu
Category Excavators
Subcategory Large
Model PC1250LC-8 MH
Condition New
Year 2021
Hours 0
