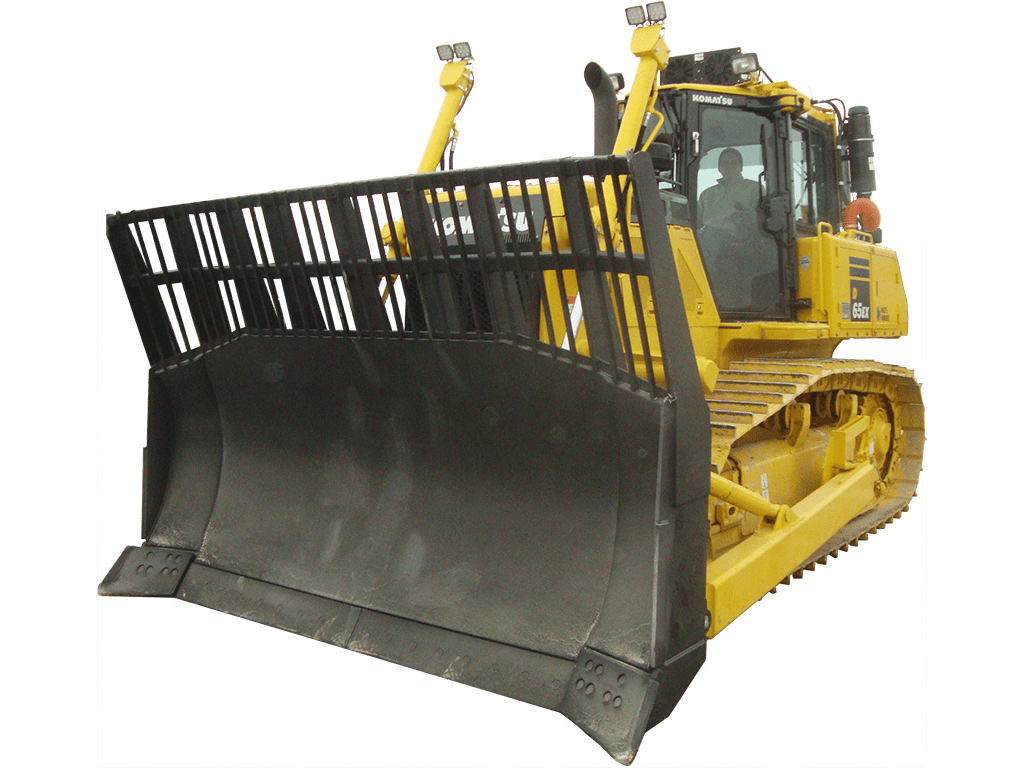

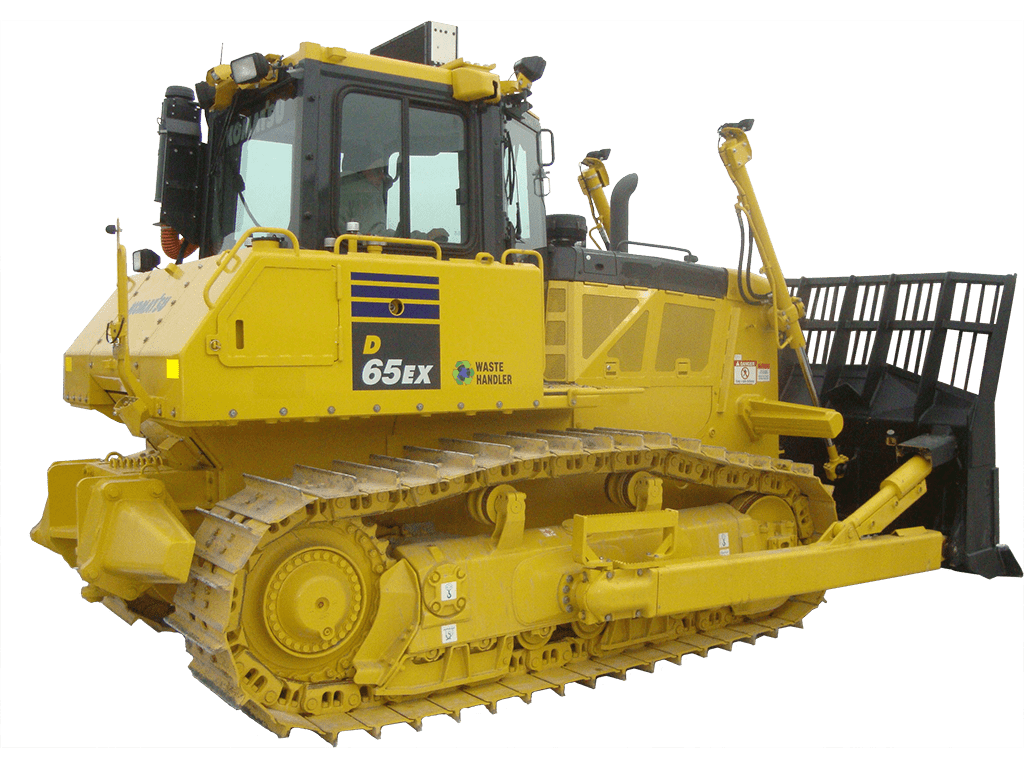

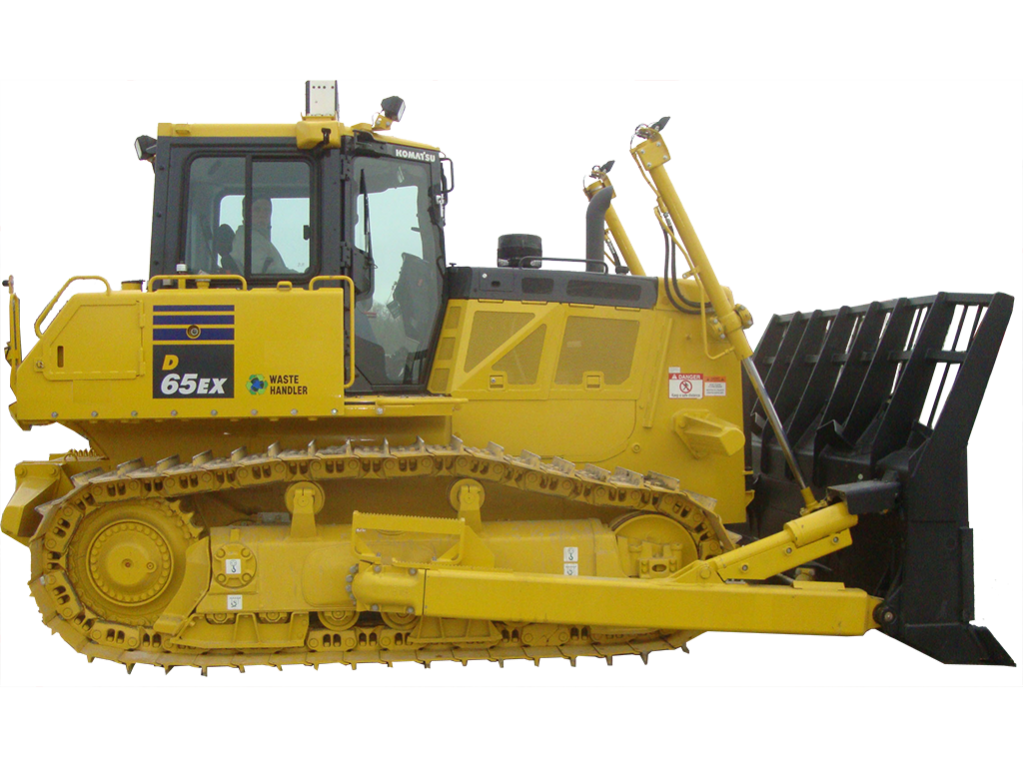

Komatsu D65EX-18 WH Crawler Dozer

BASE MACHINE*

• Air cleaner, double element with dust indicator
• Alternator, 90 ampere/24V
• Auto idle shutdown function
• Backup alarm
• Batteries, 200 Ah/2 x 12V
• Battery disconnect switch
• Blade lift cylinders
• Color monitor, LCD
• Decelerator pedal
• Engine hood
• Engine intake centrifugal precleaner
• Engine, gull-wing side covers
• Engine shutdown secondary switch
• Fenders
• Front pull hook
• High mount foot rests
• Horn, warning
• Hydraulic driven radiator cooling fan with reverse clean mode
• Hydraulics for rear equipment
• KOMTRAX® Level 5
• Komatsu Diesel Particulate Filter (KDPF)
• Komatsu Variable Geometry Turbocharger (KVGT)
• Locks, filler caps and covers
• Muffler with curved exhaust pipe
• Oil pressure check ports for power train
• Operator ID function
• PM service connector
• Radiator mask, heavy-duty, hinged, perorated
• Radiator reserve tank
• Rear cover
• ROPS cab**
  • 75 dB operator ear noise level
  • Air conditioner
  • Cab accessories 12V power supply (2 ports)
    – Cup holder
    – Rearview mirror
    – Rear view monitoring (1 camera)
    – AM/FM Radio w/remote AUX plug (3.5 mm)
  • Shovel holder
  • Work lights
    – 2 front, hood mounted
    – 2 front, cab mounted
    – 1 rear, left fender mounted
    – 2 rear, cab mounted
• Seat, air suspension, fabric, heated low back, rotates 12.5° to right, headrest
• Seat belt, 76 mm 3″, retractable
• Seat belt indicator
• Sealed electrical connectors
• Secondary engine shutoff switch
• Starting motor, 11.0 kW/24V
• Steering system: Hydrostatic Steering System (HSS)
• Torque converter with auto lock-up
• Track roller guards, center and end sections
• Track shoe assembly
  – Heavy-Duty lubricated rotary bushing (PLUS) track
  • 560 mm 22″ single grouser shoe (EX with PAT)
  • 610 mm 24″ single grouser shoe (EX with outside mount blade)
  • 760 mm 30″ single grouser shoe (WX with outside mount blade)
  • 760 mm 30″ single grouser shoe (PX, WX with PAT)
  • 915 mm 36″ single grouser shoe (PX with outside mount blade)
• Transmission with auto/manual shift modes
• Underguards, heavy duty
• Hinged belly pan
• Transmission
• Water separator
• Wide core cooling package

* Dozer assembly and rear mounted equipment are not included in base machine standard equipment
** Cab meets OSHA/MSHA ROPS and FOPS Level 2 standards

WASTE HANDLER PACKAGE

• Trash rack
• Rear counterweight (with striker bars) HD 1046 kg 2,306 l0
• – 8 plates @ 44 kg 97 lb each
• 140 Amp alternator
• Front striker bars
• Rear striker bars
• Deflector bars
• Engine air cleaner
• Cab air cleaner
• Tank guards
• Roof mounted AC
• Engine thermal wraps
• KDPF cover
• Track shoe hole
• Final drive seals
• Additional work lights
• – 2 additional
• – cylinder mounted
• Additional perforations
• Auto reversing fan
• 2 piece radiator door
• Powered belly pan winch

• Alternator precleaner kit
• Powered cab air precleaner
• Straight tilt frame for use with allied blades
• Topcon^® Plug-N-Play bolt-on finishing kit
• Track roller guard, full length
• Track shoe hole

Multi-shank ripper (for D65EX/WX)

• Weight
  1920 kg 4,230 lb
• Beam length
  2170 mm 7’1″
• Maximum lift above ground
  640 mm 2’1″
• Maximum digging depth
  590 mm 1’11”
